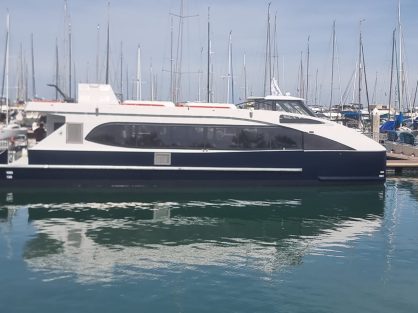

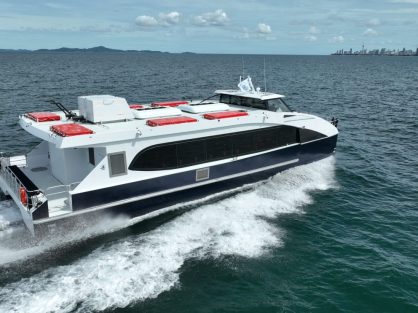

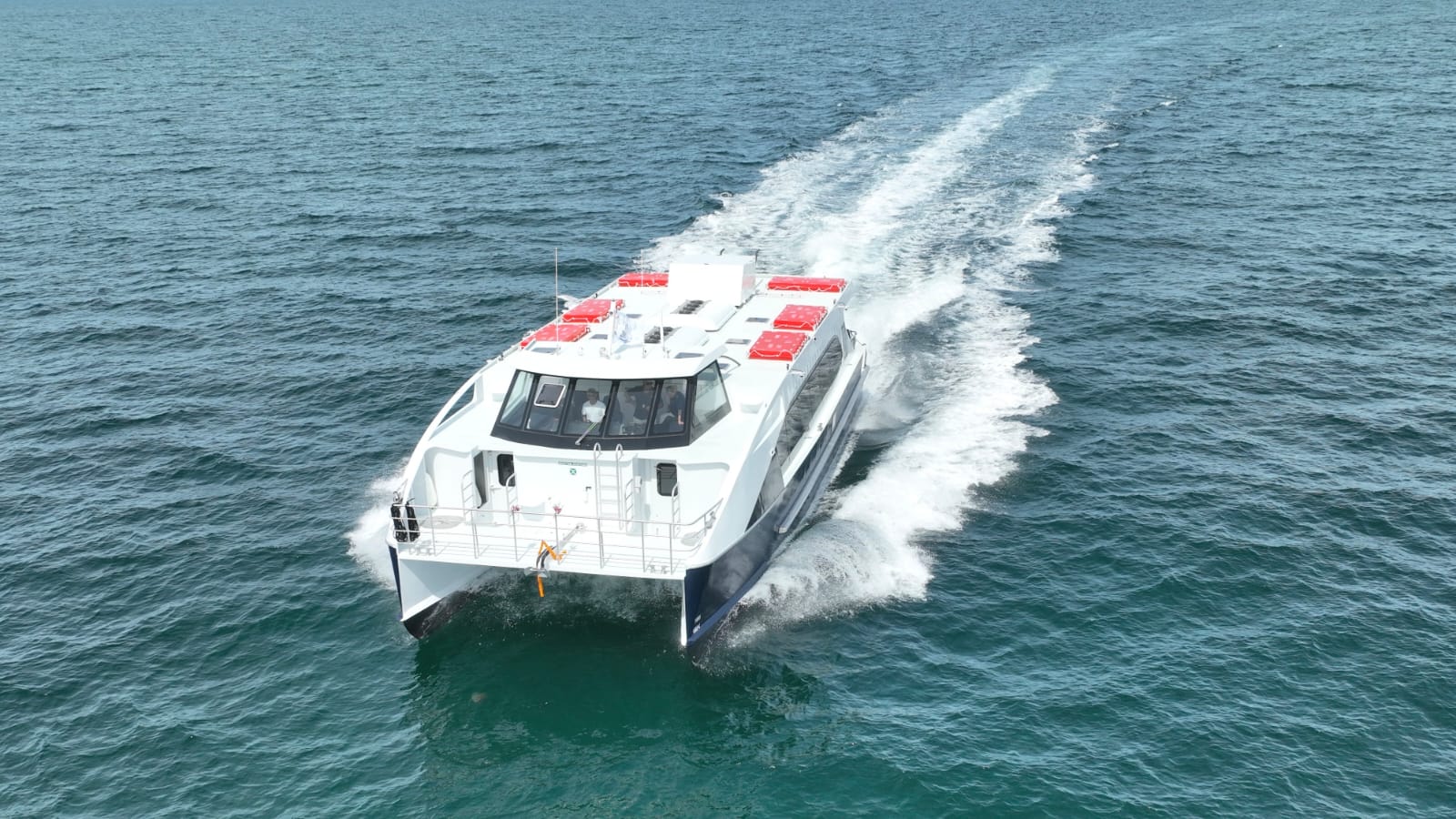

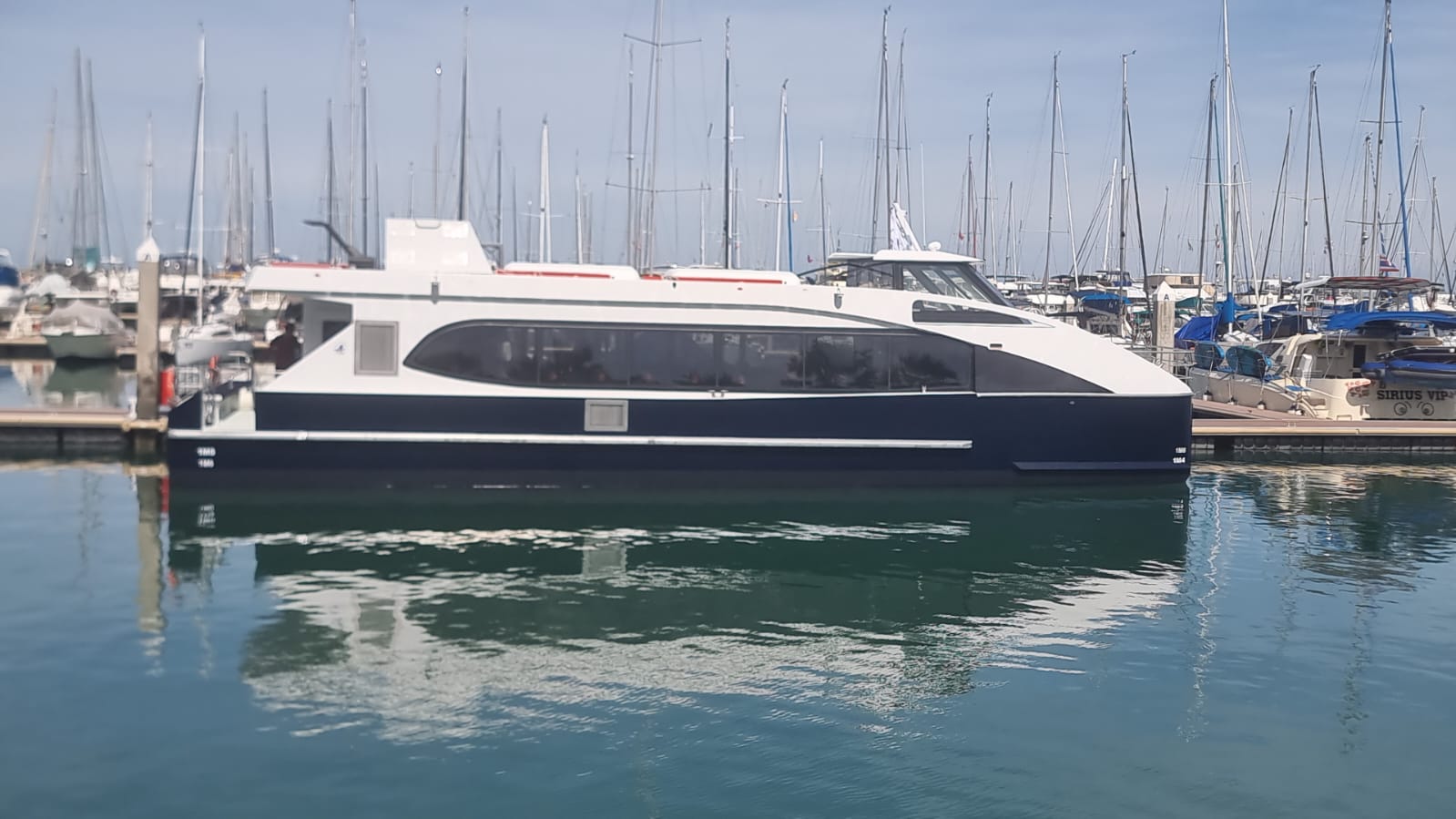

Built in 2025 to Australian standards, this ferry delivers fast, efficient diesel-powered performance for commuter and shuttle services. The Seacat 1880 Ferry is an impressive 18.8 metres. This high-performance passenger catamaran is designed for commercial operations. With a capacity for 110 passengers, it ensures comfort through Seaborn “Pandora” high-back recliner seats upholstered in leather-look fabric. The ferry comes equipped with essential navigation and safety equipment. Including Simrad GPS systems, Class B AIS, Icom VHF Radio, and Simrad autopilot system. Onboard amenities such as air conditioning, two WC compartments, and extensive safety gear ensure passenger comfort and security. Making this ferry ideal for both short and extended routes. The Seacat 1880 offers a robust and premium ferry solution tailored for demanding maritime transport needs.
Seacoach 1880
Price
$1,300,000.00
Name
Seacoach 1880
Model year
2025
Location
Ocean Marina
Length
62
Reference
MMAPASSENGER
Full Specifications
The vessels shall be constructed and fitted out in accordance with the owner’s requirements
for a passenger ferry. (110 persons inside). The vessels shall be capable of withstanding
wind and wave forces of open seas when fully loaded.
All aluminium is to be of certified marine grade standard. (Plate 5083 h321 & extrusion
6061 T6) or equivalent. Welding shall be carried out by suitably certified welders in
accordance with the welding schedule. The approved welding schedule shall be used during
construction in all cases.
Length (l.o.a.) 18.80 metres
Length (l.w.l.) 18.80 metres
Beam 7.60 metres
Depth 1.75 metres
Draft (loaded) 1.25 metres
Engines Two (2) CUMMINS QSM 11 Diesel Marine Engines
Commercial Propulsion Engines. Warranty 2 years / 2000 Hrs
6 cylinders, 4 stroke, direct-injected turbocharged
(Intermittent-Rating) 610mhp at 2300rpm
Fuel (Integral) 2 of 1200 ltr with KUS gauges
Fresh water (Separate) 1 of 400 ltr
Sullage Overboard
Passenger seating: Seating arrangement shall be provided in accordance with the general
arrangement plan.
Main Deck Inside Economy Seating: Seating: (110) shall be Seaborn “Pandora” high
back recliner, upholstered (Leather look fabric) seats with a track system. These shall include lifejacket bags and document holders. (2 sets of removable headrest covers with logos)
Helm seating: shall be “Deluxe Markilux Pilot Seat” seat plus one fabricated aluminium seat for crew. Aft deck to be fitted with an aluminium bench seat (folding type) and
fordeck to be fitted with one aluminium bench seat.
W.C. facilities: Two (2) of W.C. compartments, each containing a fixed domestic toilet with a salt water flush system and cold water sink, and a bidet sprayer. The system shall incorporate a discharge overboard arrangement. Salt Water Pump 24V DC Jabsco Par Max
2.9.
Air conditioning throughout enclosed parts of the vessel.
Simrad GPS: NSSevo3 12-inch display with GPS
CMap Max -N+ North West Africa
Depth Sounder: Simrad P319 Transducer
Class B AIS: V3100 Class B AIS with Antenna
VHF Radio: Icom 330 Ultra Compact, Waterproof VHF with VHF Antenna
Autopilot: Simrad NAC-3 VRF Core pack autopilot system
The helm console shall include all engine instrumentation. Eg: voltmeter, tachometer, oil
and temperature gauges, engine hours, and boost gauges, etc. (as supplied by Engine Supplier)
x 60” Flat Screen T.V.s (Model Samsung), three in the main cabin.
5 x 20 Man Karley Float life rafts.
2 x lifebuoys, one with mcmurdo salt water activated light and one with 30 metres of
8mm line. Fitted with retro-reflective tape, and with the vessel’s name and port clearly
marked.
110 x Solas lifejackets
3 x parachute distress rockets.
2 x red held flares.
1 x hand held orange smoke signals
(Pyrotechnics shall be sealed in watertight compartment)
2 electric torches
1 x fire buckets (metal)
1 x first aid kit.
1 x clock
1 x barometer
1 x signaling light
1 x copy of the rescue signal table plus flags.
1 x e.p.i.r.b.
Engines Two (2) CUMMINS QSM 11 Diesel Marine Engines
Commercial Propulsion Engines. Warranty 2 years / 2000 Hrs
6 cylinders, 4 stroke, direct injected turbo-charged
(Intermittent-Rating) 610mhp at 2300rpm
Bilge Pumps
Fresh water systems
Batteries: two (4) of 12volt 200ah lead acid batteries (in series 24V) are to be supplied with bridging bank for main engines plus house bank (two (2) of 12volt 200ah lead acid batteries (in series 24V) . The batteries are to be secured in fiberglass, acid proof boxes.
One (2) separate 12 volt 200ah emergency batteries (in series 24V) are to be provided at deckhouse as per regulations. All boxes are to be properly vented. All battery leads shall be 20 rubber insulated welding cable with disconnect switches. The start lead cables shall
be run as direct as possible.
Simrad GPS: NSSevo3 12-inch display with GPS
CMap Max -N+ North West Africa
Depth Sounder: Simrad P319 Transducer
Class B AIS: V3100 Class B AIS with Antenna
VHF Radio: Icom 330 Ultra Compact, Waterproof VHF with VHF Antenna
Autopilot: Simrad NAC-3 VRF Core pack autopilot system.
